Hydraulic And Servo Motor System Full-automatic Blow Moulding Machine（0.6-1.5L)） 򠈡

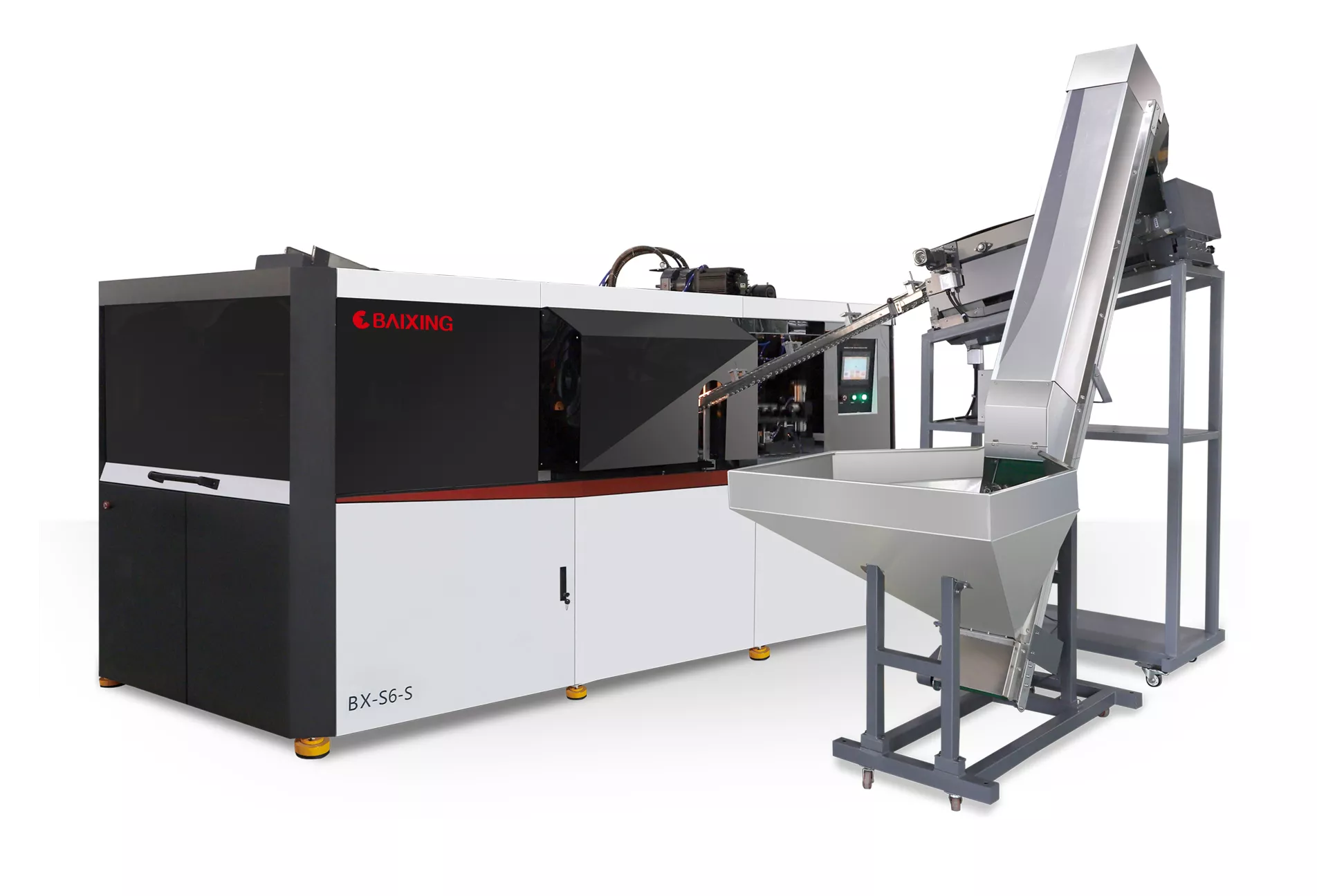

Hydraulic And Servo Motor System Full-automatic Blow Moulding Machine（0.6-1.5L）

——

-The servo motor is adopted to drive the molding mechanism, triggering off a bottom mold linkage as well. The whole mechanism works speedy, accurately, stably and flexibly. Meanwhile, itis energy efficient and environmental safe.

-The servo motor driven stepping system and stretching system have improved the speed. flexibility and accuracy of blowing -The high pressure blowing system is also equipped with the gas recycling device (air recycling rate can be up to 30%) which may reduce power consumption as much as 30kw per hour. That means you do not need the low pressure air compressor any more which will minimize your investment as well as the space for placing the machine. In one word, it is energy-efficient andbenvironmental safe. -The simple slide-in way of mold mounting makes it possible for the operators to change molds easily within 30 minutes, -The man-machine interface in highly automated and easy to operate. The compact machine occupies a smaller area.

Main Data

Machine type	Unit	BX-S9-S	BX-S6-S	BX-S6-A	BX-S4-S
Theoretical output	Pcs/hr	10000-11000	7000-8000	5000-6000	4000-5000
Container volume	L	0.6	0.6	1.5	1.5
Preform inner diameter	mm	18-38	18-38	18-38	18-38
Max.bottle diameter	mm	68	68	90	90
Max.bottle height	mm	240	240	320	320
Cavity	Pc	9	6	6	4
Main machine size	M	5.4x2.1x2.4	4.0x2.1x2.4	5.4x2.1x2.4	4.0x2.0x2.4
Machine weight	T	7.0	6.5	7.0	5.5
Max.heating power	KW	65	55	72	55
Installation power	KW	68	58	75	58
