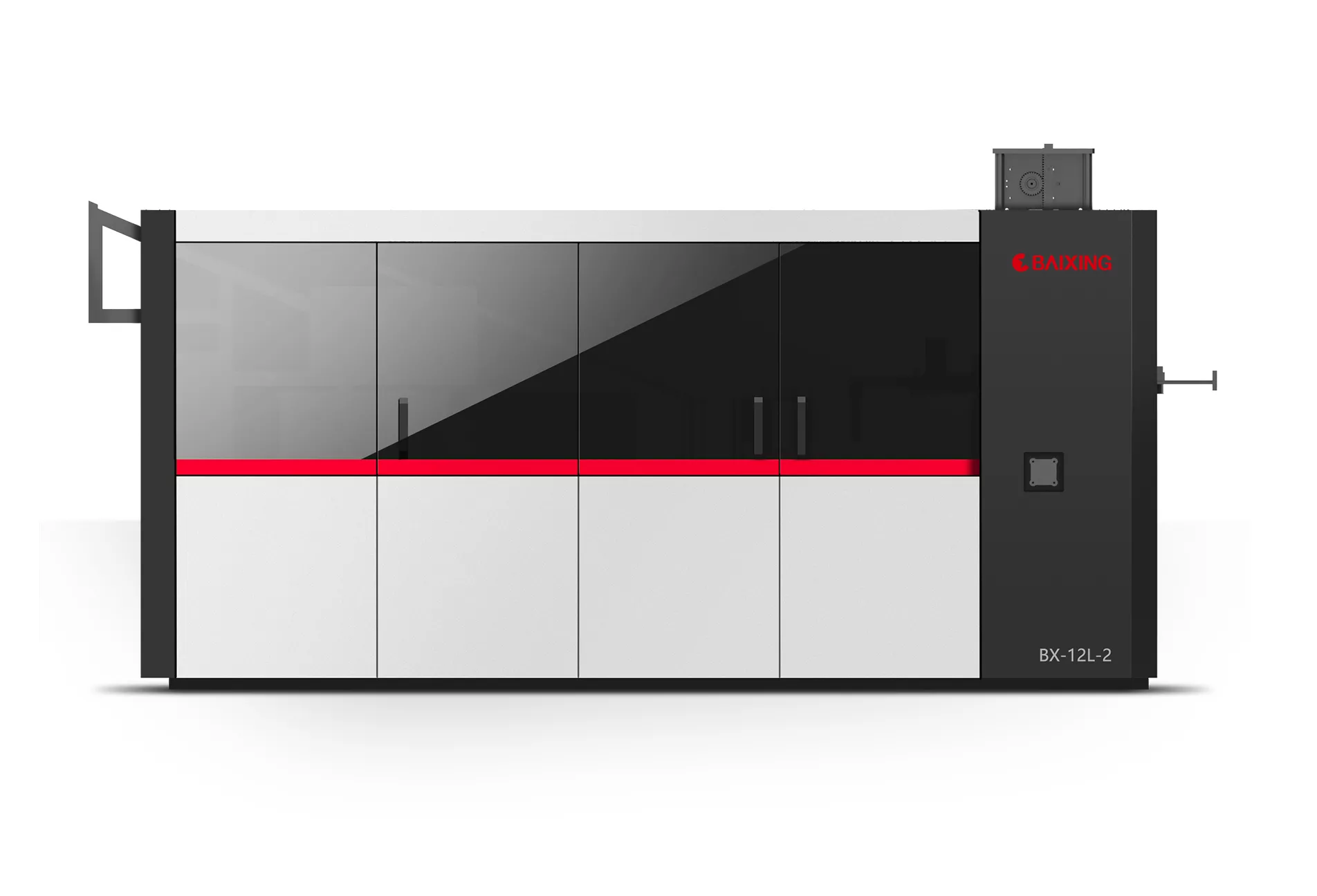

Full-automatic Blow Moulding Machine(Large capacity bottle)(12-20L)
——
- Good stability: thanks to excellent design concept, strict processing requirements and excellent electrical matching
- Competitive price: the machines offered are of good quality and at a lower price.

Main Data

Machine type

Unit

BX-12L-2

BX-20L-2

Theoretical output

Pcs/hr

1100-1300

600-800

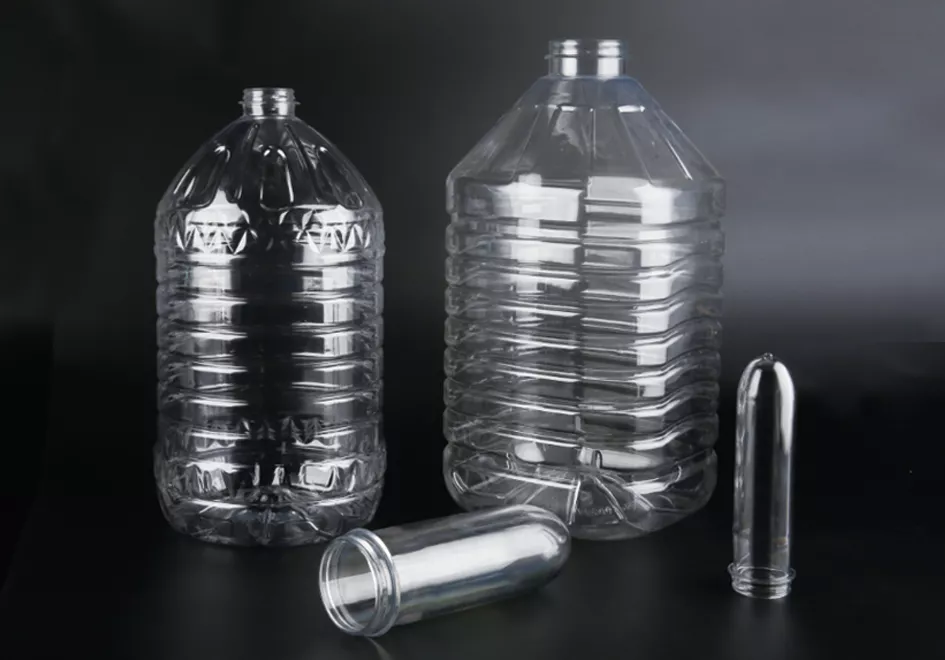

Container volume

L

12L

20L

Preform inner diameter

mm

65

85

Max.bottle diameter

mm

230

300

Max.bottle height

mm

450

520

Cavity

Pc

2

2

Main machine size

M

4.3x2.0x2.3

5.3x2.0x2.4

Machine weight

T

4.5

5.5

Feeding Machine dimension

M

2.3x1.4x2.5

72.5x1.4x2.7

Feeding Machine weight

T

0.3

0.5

Max.heating power

KW

90

120

Installation power

KW

96

130

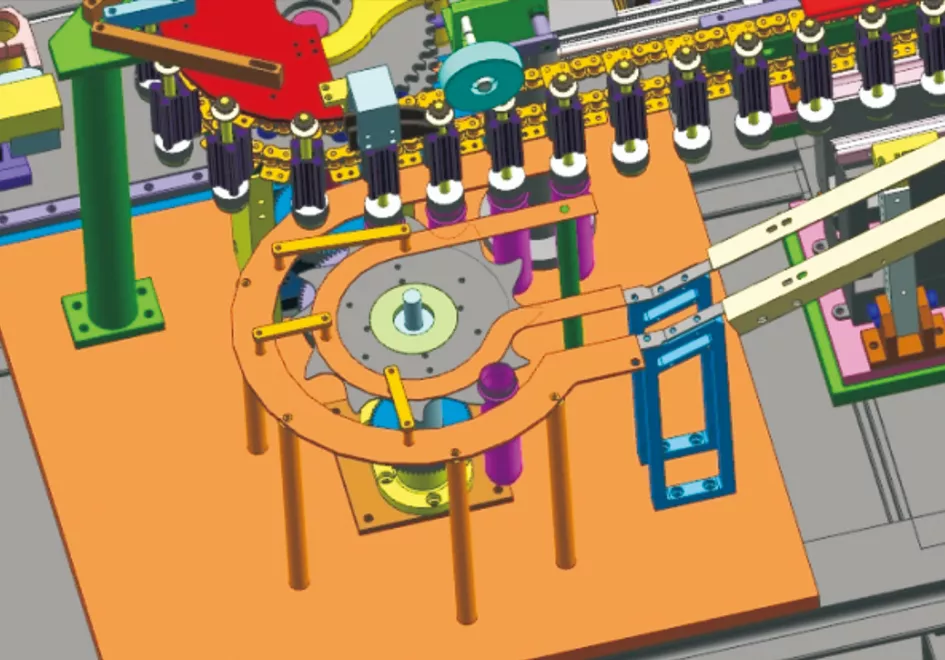

-Adopt star-wheel preform infeed

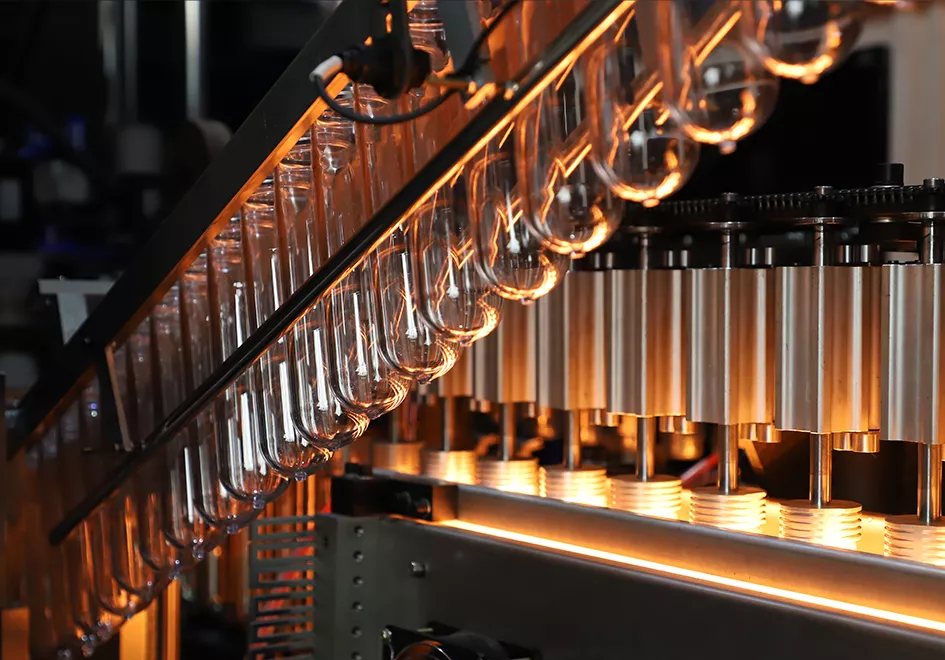

-Adopt preform hanging continuous heating system
-Adopt servo-pneumatic movement
-Simple Operation, Stable movement, Energy-Saving
