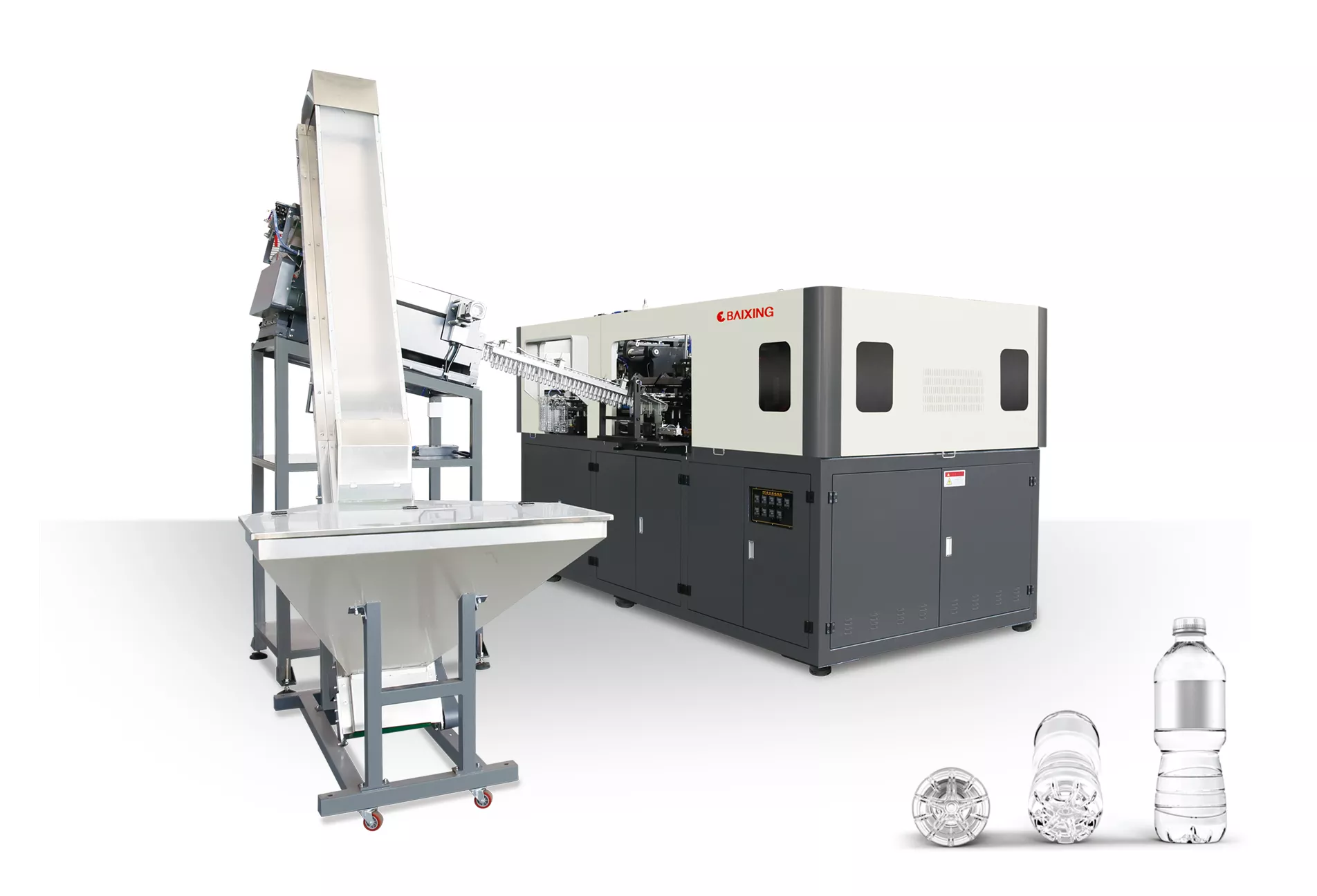

Full-automatic Blow Moulding Machine（0.6-2L）
——
- Features Touch screen computer of DELTA. Operate consistently and simply. - Features pneumatic elements of German FESTO and Japan SMC. - Specially designed for energy-saving purpose.Mechanical unit is compact and sound. - Features trouble alarm and diagnostic units to allow easy maintenance. - Environmentally friendly design . Nontoxic conveyor beltto carry preforms.

Main Data

Machine type

Unit

BX-S6

BX-S4-A

BX-S4

Theoretical output

Pcs/hr

5000-6000

3000-4000

3500-4000

Container volume

L

0.6

2

0.65

Preform inner diameter

mm

38

38

38

Max.bottle diameter

mm

68

105

70

Max.bottle height

mm

240

350

240

Cavity

Pc

6

4

4

Main machine size

M

4.05x2.2x2.3

3.6x2.1x2.3

3.05x1.95x2.25

Machine weight

T

3.6

3.3

2.8

Feeding Machine dimension

M

2.65x1.2x3.1

2.1x1.3x2.5

2.1x1.3x2.5

Feeding Machine weight

T

0.4

0.25

0.25

Max.heating power

KW

48

54

42

Installation power

KW

50

56

45
