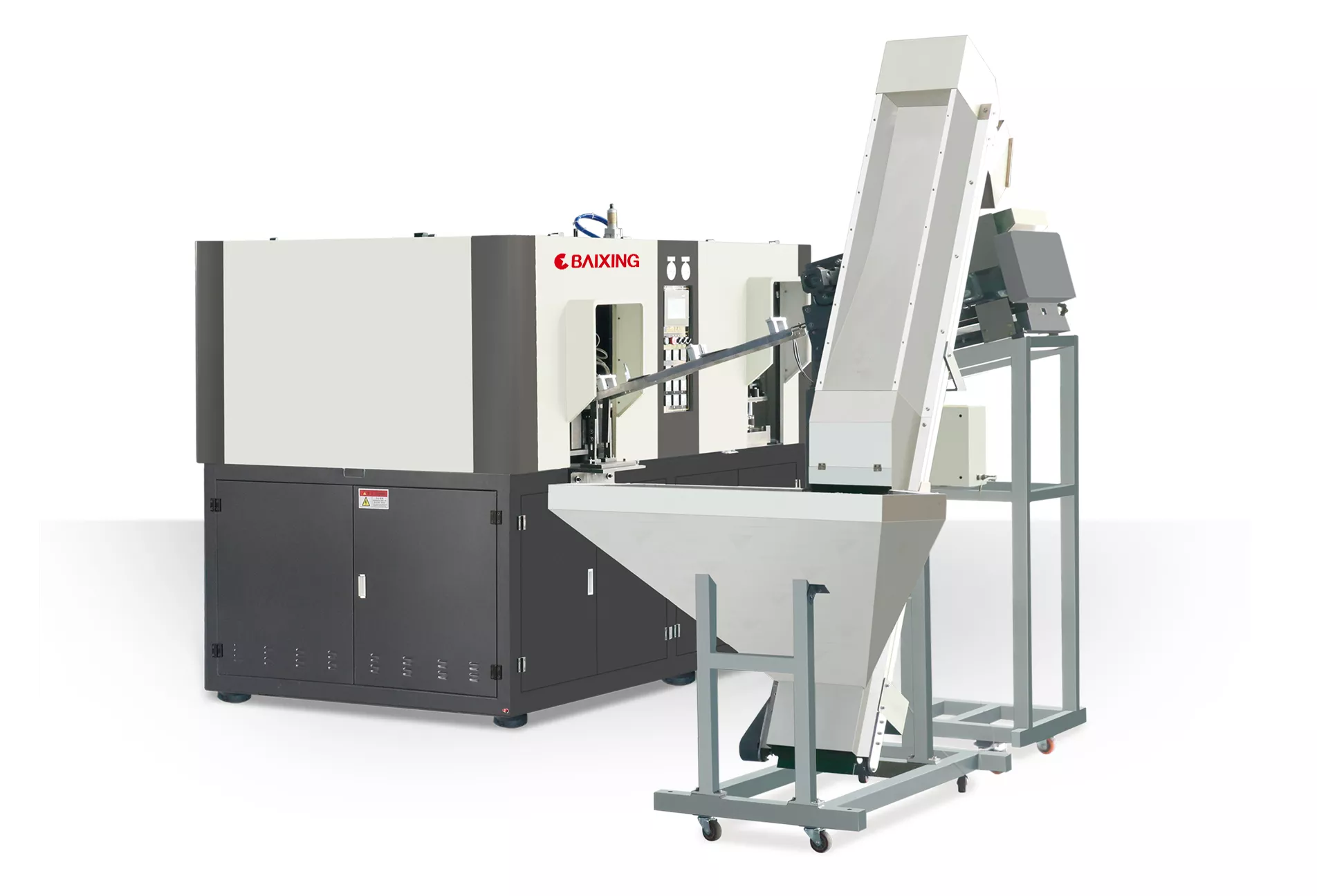

Full-automatic Blow Moulding Machine（5-10L）
——

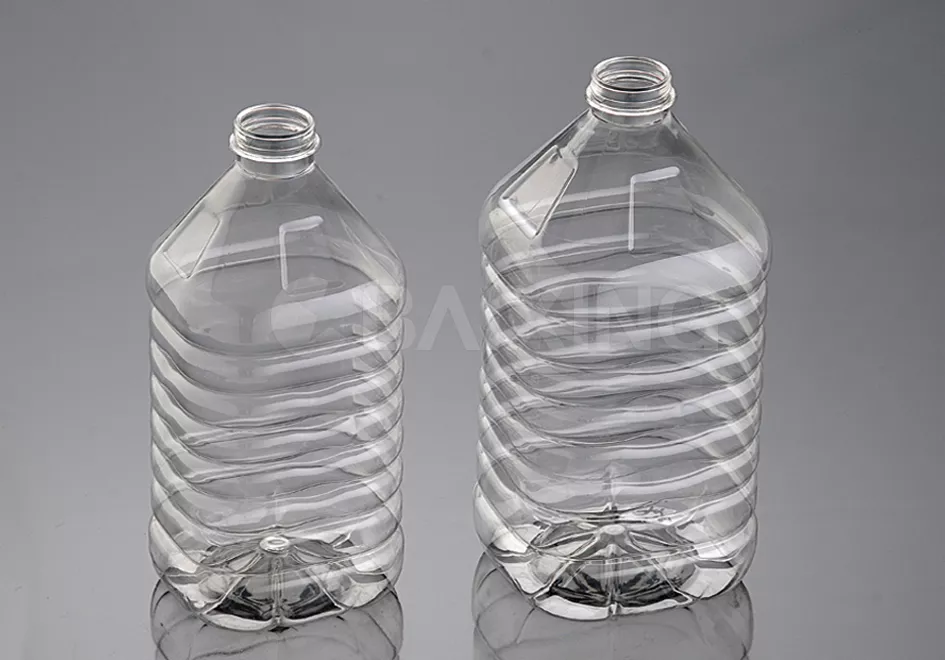

-BX-5000 automatic machine can blow bottles of different capacity, such as 1-5L bottle with wide-mouth,and 3L-6L edible oil bottle, etc. - Features Touch screen computer of DELTA. Operate consistently and simply. - Features pneumatic elements of German FESTO and Japan SMC. - Specially designed for energy-saving purpose.Mechanical unit is compact and sound. - Features trouble alarm and diagnostic units to allow easy maintenance. - Environmentally friendly design . Nontoxic conveyor beltto carry preforms.

Main Data

Machine type

Unit

BX-5000A

BX-10L-1

Theoretical output

Pcs/hr

500-700

500-650

Container volume

L

5

10

Preform inner diameter

mm

120

65

Max.bottle diameter

mm

200

220

Max.bottle height

mm

350

450

Cavity

Pc

1

1

Main machine size

M

2.65x1.85x2.1

3.4x2.0x2.2

Machine weight

T

2.3

3.0

Feeding Machine dimension

M

2.1x1.4x2.5

2.3x1.4x2.5

Feeding Machine weight

T

0.25

0.3

Max.heating   power

KW

33

42

Installation   power

KW

35

45
