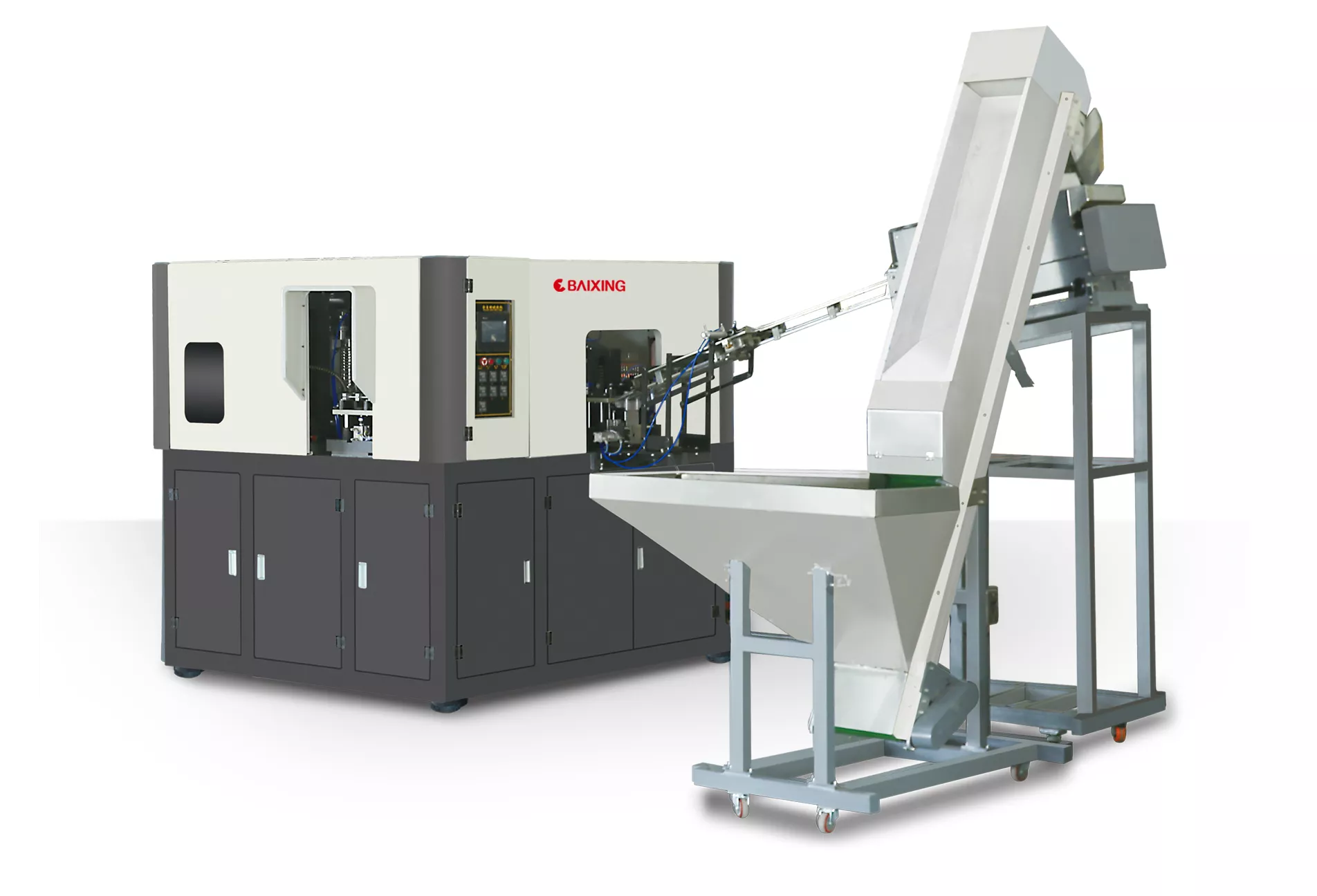

Full-automatic Blow Moulding Machine(0.6L)
——
- Features Touch screen computer of DELTA. Operate consistently and simply.
- Features pneumatic elements of German FESTO and Japan SMC.
- Specially designed for energy-saving purpose.Mechanical unit is compact and sound.
- Features trouble alarm and diagnostic units to allow easy maintenance.
- Environmentally friendly design . Nontoxic conveyor beltto carry preforms.Main Data
Machine type | Unit | BX-S3 | BX-S3-S |
Theoretical output | Pcs/hr | 2700-3200 | 3000-3600 |
Container volume | L | 0.6 | 0.6 |
Preform inner diameter | mm | 38 | 38 |
Max.bottle diameter | mm | 68 | 68 |
Max.bottle height | mm | 240 | 240 |
Cavity | Pc | 3 | 3 |
Main machine size | M | 2.0x2.1x2.3 | 3.2x2.1x2.3 |
Machine weight | T | 2.0 | 2.8 |
Feeding Machine dimension | M | 2.4x1.6x1.8 | 2.4x1.6x1.8 |
Feeding Machine weight | T | 0.25 | 0.25 |
Max.heating power | KW | 24 | 30 |
Installation power | KW | 25 | 35 |
