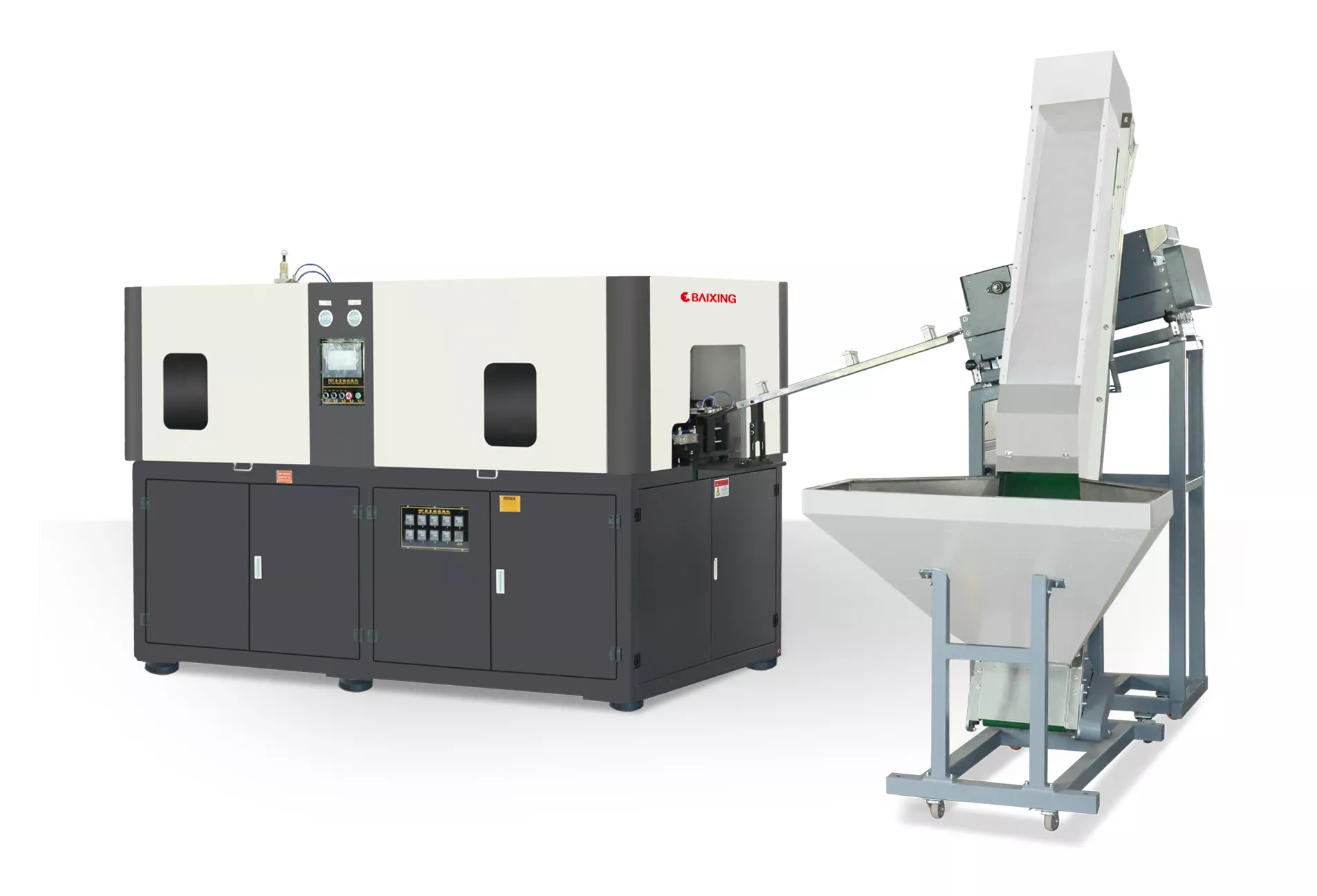

Full-automatic Blow Moulding Machine(2L)
——
- Features Touch screen computer of DELTA. Operate consistently and simply. - Features pneumatic elements of German FESTO and Japan SMC. - Specially designed for energy-saving purpose.Mechanical unit is compact and sound. - Features trouble alarm and diagnostic units to allow easy maintenance. - Environmentally friendly design . Nontoxic conveyor beltto carry preforms.

Main Data

Machine type

Unit

BX-S2-A

Theoretical output

Pcs/hr

1400-2000

Container volume

L

2

Preform inner diameter

mm

60

Max.bottle diameter

mm

105

Max.bottle height

mm

350

Cavity

Pc

2

Main machine size

M

3.1x1.75x2.25

Machine weight

T

2.2

Feeding Machine dimension

M

2.5x1.4x2.5

Feeding Machine weight

T

0.25

Max.heating power

KW

27

Installation power

KW

29
