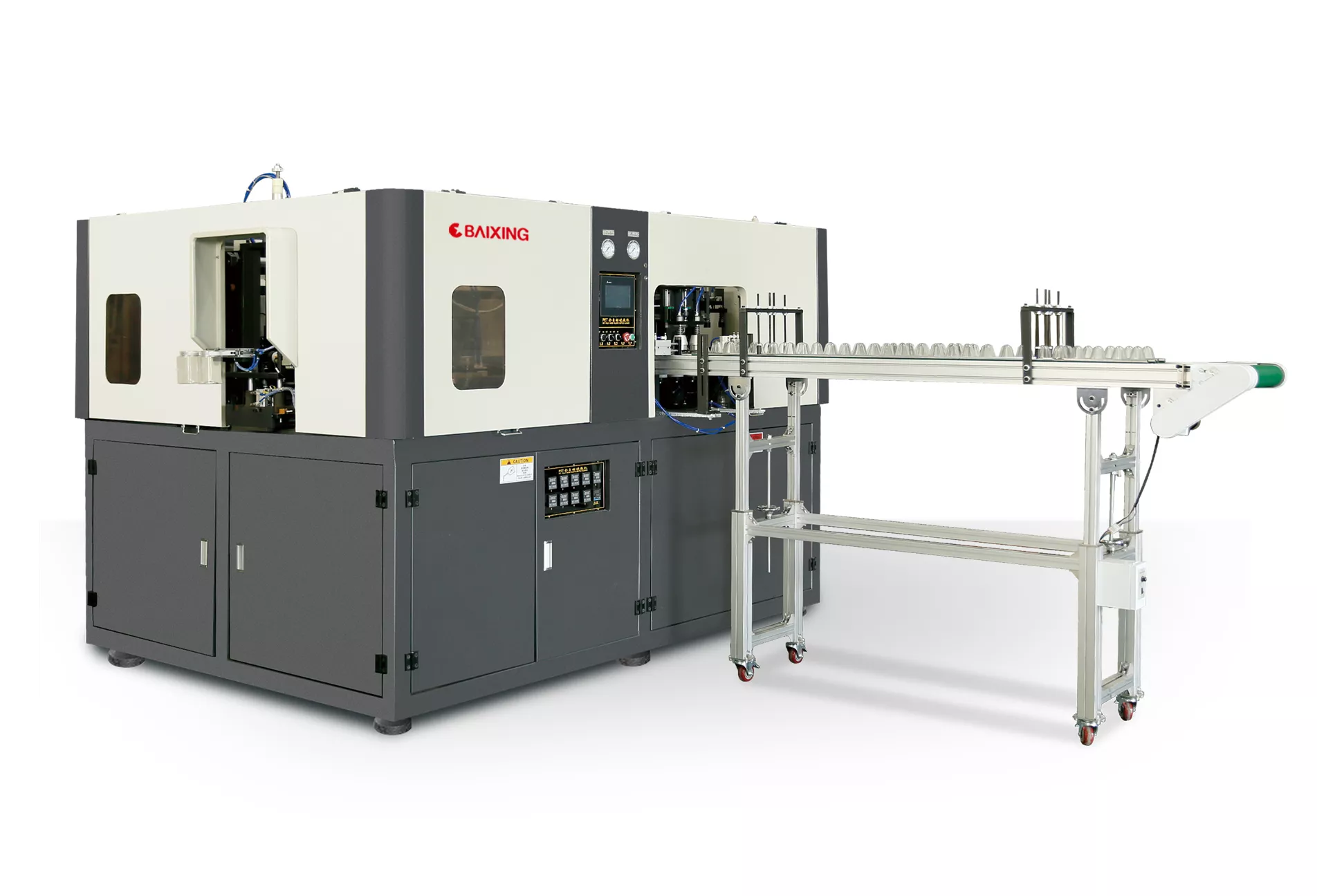

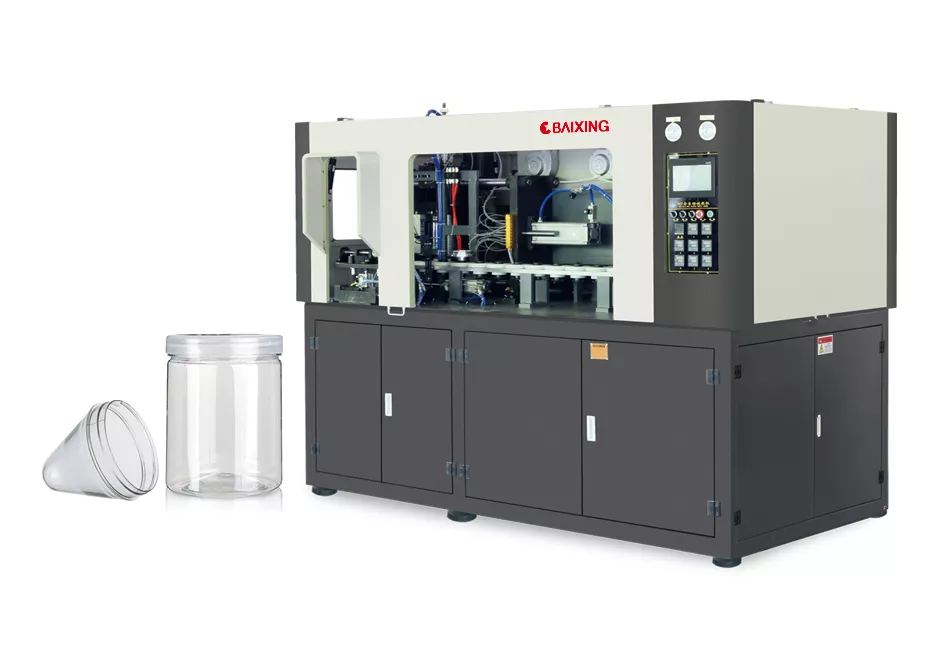

Hand Feeding Preform Automatic Blow Moulding Machine(2.5-5L)
——

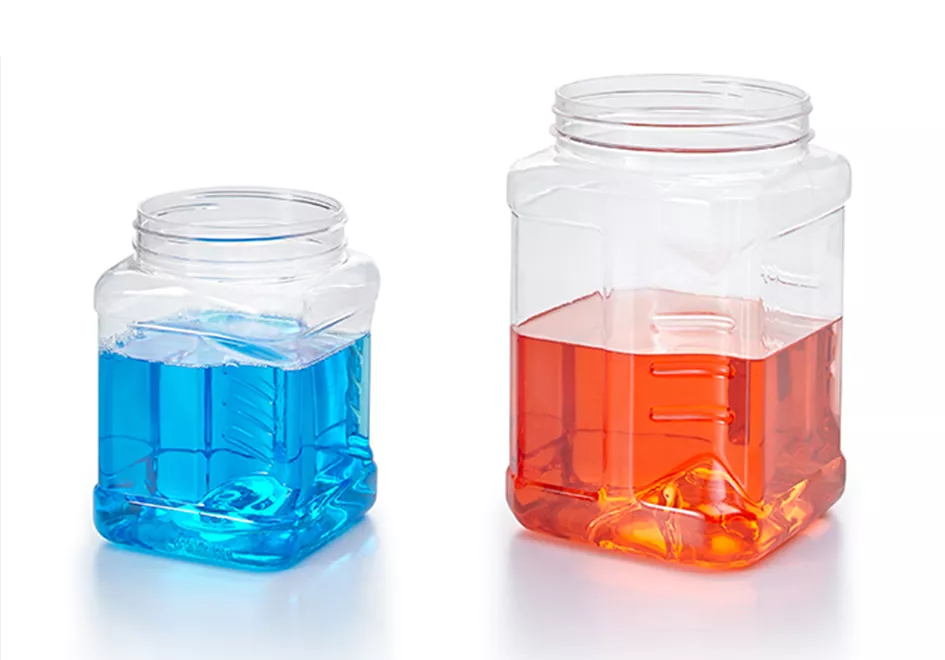

This model can blow big mouth PET jars. Preforms feeded by hands and bottles heated, blowed and come out automaticlly;no technicial requiremen from the worker; hourly capacity from 800-100pcs; lower cost than usual automatic machines and while enjoying stable performace.
Main Data
Machine type | Unit | BX-2500 | BX-5000 |
Theoretical output | Pcs/hr | 800-1000 | 500-700 |
Container volume | L | 2.5 | 5 |
Preform inner diameter | mm | 110 | 140 |
Max.bottle diameter | mm | 140 | 200 |
Max.bottle height | mm | 320 | 350 |
Cavity | Pc | 1 | 1 |
Main machine size | M | 2.65x1.85x1.8 | 2.7x1.75x2.0 |
Machine weight | T | 1.5 | 2.0 |
Max.heating power | KW | 24 | 33 |
Installation power | KW | 25 | 34 |
