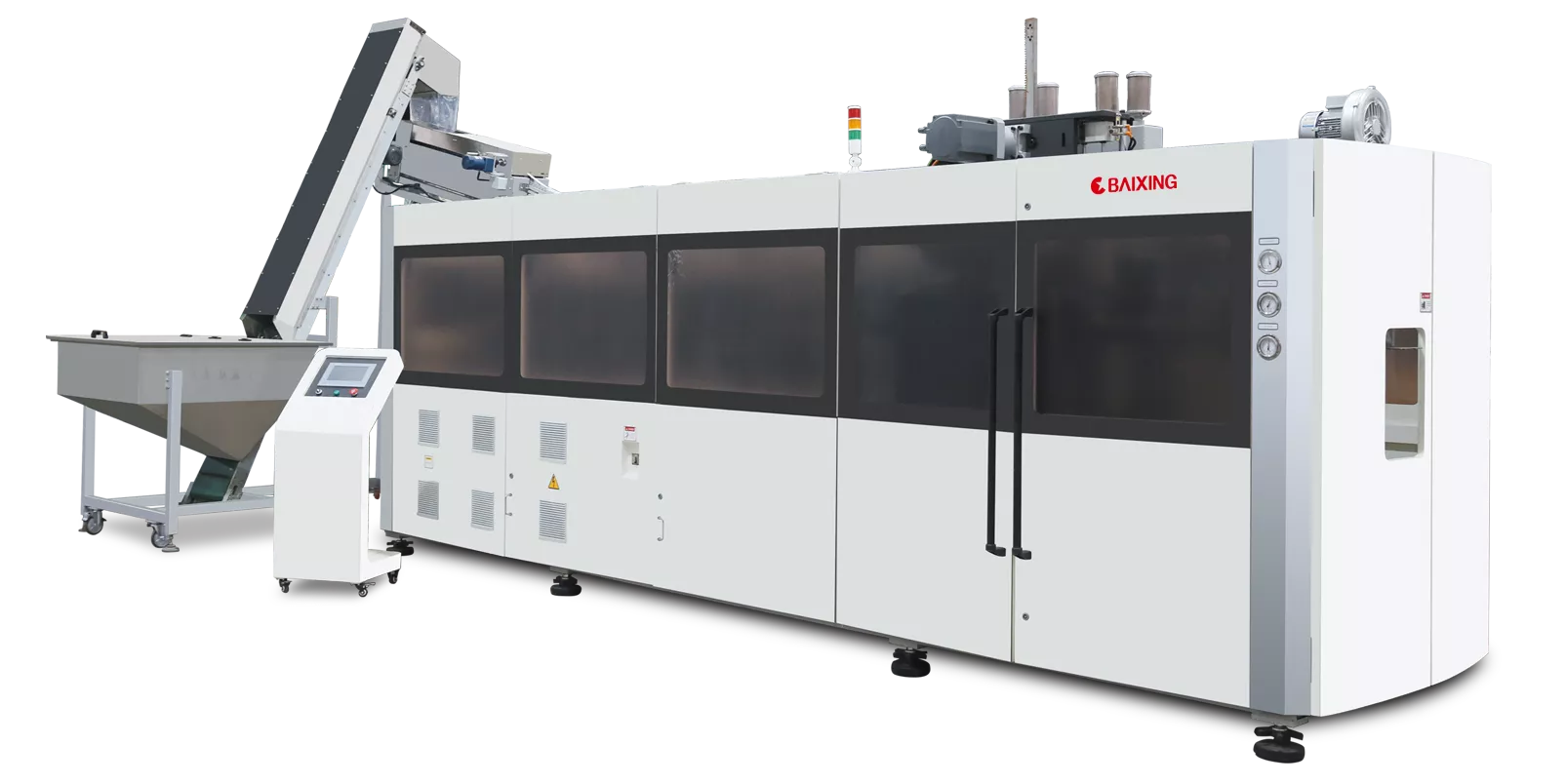

Full-automatic Servo Blow Molding Machine (CP Series Large Capacity )

——

1. The machine use continuous rotation system with multiple safety protection devices to ensure the high speed preform feeding. 2. Horizontal rotation transfer system make the construction and maintance more easy, reduce cost of spare part change. 3. The heating pitch between the preforms is small,effectively using the heating space of the lamp tube,and improving the heating efficiency and energy-saving effect of the preforms. 4. The water runs directly through the heating channel with air cooling system to protect preform neck from deformation. 5. Optimize oven air draft and preform surface cooling.Reversible heating box make it more easy to change lamp. 6. Mould closing adopts CAM linkage,no chain plate pin shaft make it small volume and long lift. 7. Servo motor for moving the preform into moudl ensure fast speed and accurate positioning . 8. Servo moto is used to drive the drawing and blowing station,equipped with high speed precision blowing valve set to achieve high production requirements. 9. Stainless steel pipe make the air blowing more clean without pollution. 10. High pressure recycle recycle system reduce power consumption. 11. Multiple direction positioned for the autoloader make it more flexibly for installation. 12. The machine is desighed to be compact in size.effectively reducing floor space.

Related Products

Main Data

ITEMS		UNIT	CP2-7L	CP2-10L	CP3-5L	CP4-5L	CP2-15L	CP1-18L	CP1-20L	CP2-20L
CONTAINER	Number of Cavities	PC	2	2	3	4	2	1	1	2
	Max.Bottle Capactity	L	7	10	5	5	15	18	20	20
	Max.Neck Diameter	mm	50	50	50	50	60	60	72	72
	Max.Bottle Diameter	mm	195	220	180	180	250	280	280	280
	Max.Bottle Height	mm	350	420	350	350	500	500	500	500
	Theoretical Output	B.P.H*	2000	18000	3000	4000	1400	600	600	1200
MOLDING	Spindle Chain Pitch	mm	60	60	60	60	76	76	90	90
MOLDING	Bottle Cavity Pitch	mm	220	250	200	200	280			320
ELECTRICAL POWER	Max.heating Power	KW	60	60	80	80	120	60	60	120
	Servo Motor Power	KW	13	13	13	16	16	12.8	12.8	16
	Other Motor Power	KW	4	4	5	5	5	4	4	5
	Total Power	KW	77	77	98	101	141	76.8	76.8	141
	Voltage/Frequency	V/HZ	380±10% 50HZ/220V±10% 60HZ
AIR SYSTEM	Operating Pressure	Bar	7	7	7	7	7	7	7	7
	Low pressure Air Consumption	L/min	1000	1000	1000	1000	1000	1000	1000	1000
	Blowing Pressure	Bar	35	35	35	35	35	35	35	35
	High Pressure Air Consumption	L/min*	8000	10800	9000	12000	12000	6000	7000	14000
MOLD COOLING WATER	Operating Pressure	Bar	3-5	3-5	3-5	3-5	3-5	3-5	3-5	3-5
	Temperature Range	L/min	10-12	10-12	10-12	10-12	10-12	10-12	10-12	10-12
	Flow Rate	HP	50	50	50	50	50	50	50	50
	Cooling Capacity	℃	5	5	5	5	5	5	5	5
HEATER COOLING WATER	Operating Pressure	Bar	3-5	3-5	3-5	3-5	3-5	3-5	3-5	3-5
	Temperature Range	℃	15-20	15-20	15-20	15-20	15-20	15-20	15-20	15-20
	Flow Rate	L/min	50	50	50	50	50	50	50	50
	Cooling Capacity	HP	5	5	5	5	5	5	5	5
MACHINE	Size(LWH)	M	4.21.652.6	4.51.651.78	5.21.62.6	61.62.6	5.31.853	4.11.93	4.11.93	5.51.93
MACHINE	Weight	KG	4800	5000	6500	7000	6500	5000	5000	7000
Remark	1.*The theortical output is based on 500ml bottle shape,the final production capacity is based on the preform,bottle design and volume.
Remark	2.*The high pressure air consumption is based on the 500ml bottle,the final consumption will depend on the bottle volume and output.
