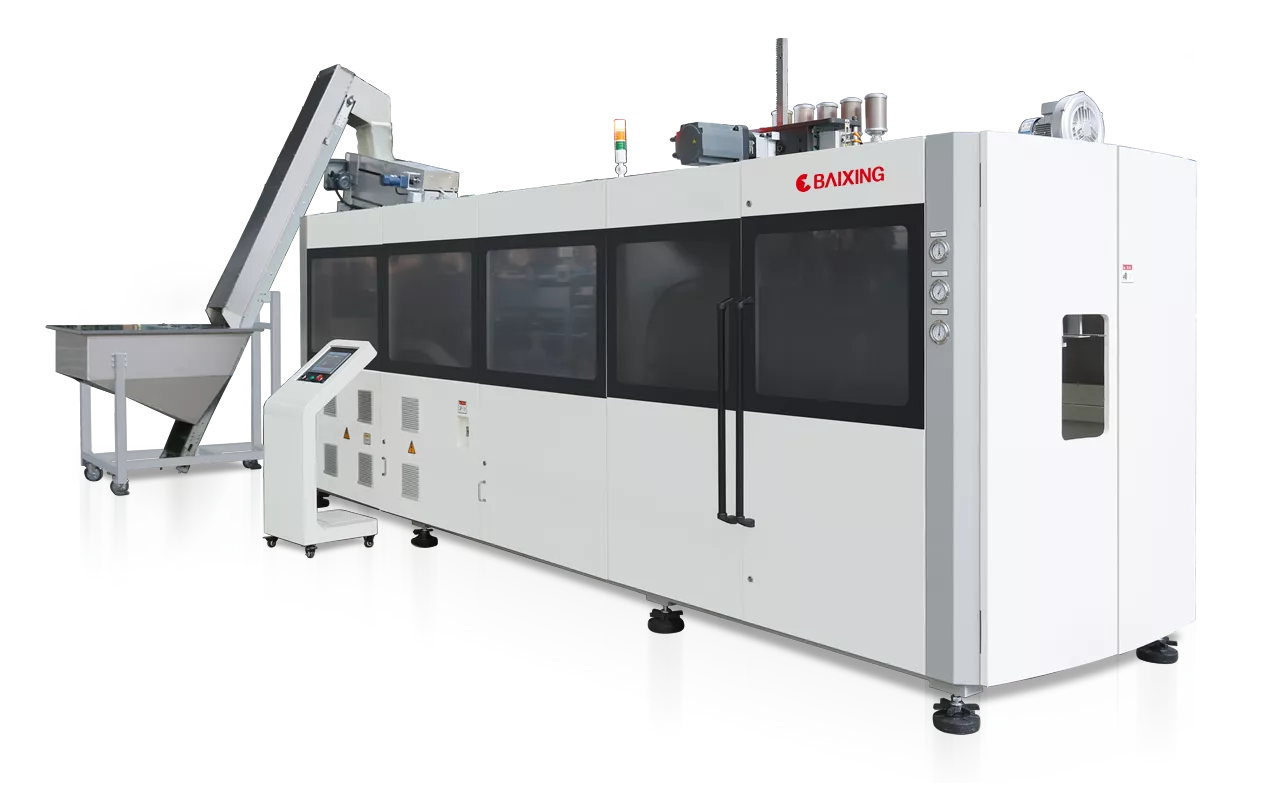

1. The machine use continuous rotation system with multiple safety protection devices to ensure the high speed preform feeding.
2. Horizontal rotation transfer system make the construction and maintance more easy, reduce cost of spare part change.
3. The heating pitch between the preforms is small,effectively using the heating space of the lamp tube,and improving the heating efficiency and energy-saving effect of the preforms.
4. The water runs directly through the heating channel with air cooling system to protect preform neck from deformation.
5. Optimize oven air draft and preform surface cooling.Reversible heating box make it more easy to change lamp.
6. Mould closing adopts CAM linkage,no chain plate pin shaft make it small volume and long lift.
7. Servo motor for moving the preform into moudl ensure fast speed and accurate positioning .
8. Servo moto is used to drive the drawing and blowing station,equipped with high speed precision blowing valve set to achieve high production requirements.
9. Stainless steel pipe make the air blowing more clean without pollution.
10. High pressure recycle recycle system reduce power consumption.
11. Multiple direction positioned for the autoloader make it more flexibly for installation.
12. The machine is desighed to be compact in size.effectively reducing floor space.
Related Products
Main Data
| ITEMS | UNIT | JP4-2.5L | JP5-1.5L | JP6-1L | JP6-1.5L | JP6-2L | |
CONTAINER | Number of Cavities | PC | 4 | 5 | 6 | 6 | 6 |
Max.Bottle Capactity | L | 2.5 | 1.5 | 1 | 1.5 | 2 | |
Max.Neck Diameter | mm | 30 | 32 | 32 | 32 | 32 | |
Max.Bottle Diameter | mm | 110 | 95 | 80 | 95 | 110 | |
Max.Bottle Height | mm | 350 | 350 | 300 | 350 | 350 | |
Theoretical Output | B.P.H* | 7500 | 9000 | 10000 | 10000 | 10000 | |
MOLDING | Spindle Chain Pitch | mm | 38.1 | 38.1 | 38.1 | 38.1 | 38.1 |
Bottle Cavity Pitch | mm | 125 | 105 | 90 | 105 | 120 | |
ELECTRICAL POWER | Max.heating Power | KW | 50 | 40 | 40 | 48 | 60 |
Servo Motor Power | KW | 12 | 12 | 12 | 12 | 13 | |
Other Motor Power | KW | 1 | 1 | 1 | 1.5 | 1.5 | |
Total Power | KW | 63 | 53 | 53 | 62 | 75 | |
Voltage/Frequency | V/HZ | 380±10% 50HZ/220V±10% 60HZ | |||||
AIR SYSTEM | Operating Pressure | Bar | 7 | 7 | 7 | 7 | 7 |
Low pressure Air Consumption | L/min | 500 | 500 | 500 | 500 | 500 | |
Blowing Pressure | Bar | 35 | 35 | 35 | 35 | 35 | |
High Pressure Air Consumption | L/min* | 3500 | 3500 | 4000 | 4000 | 4000 | |
MOLD COOLING WATER | Operating Pressure | Bar | 3-5 | 3-5 | 3-5 | 3-5 | 3-5 |
Temperature Range | L/min | 10-12 | 10-12 | 10-12 | 10-12 | 10-12 | |
Flow Rate | HP | 50 | 50 | 50 | 50 | 50 | |
Cooling Capacity | ℃ | 5 | 5 | 5 | 5 | 5 | |
MACHINE | Size(L*W*H) | M | 3.8*1.3*2.6 | 4.3*1.3*2.6 | 4.6*1.3*2.6 | ||
Weight | KG | 4000 | 4500 | 4700 | |||
备注 | 1.*The theortical output is based on 500ml bottle shape,the final production capacity is based on the preform,bottle design and volume. | ||||||
| 2.*The high pressure air consumption is based on the 500ml bottle,the final consumption will depend on the bottle volume and output. | |||||||
