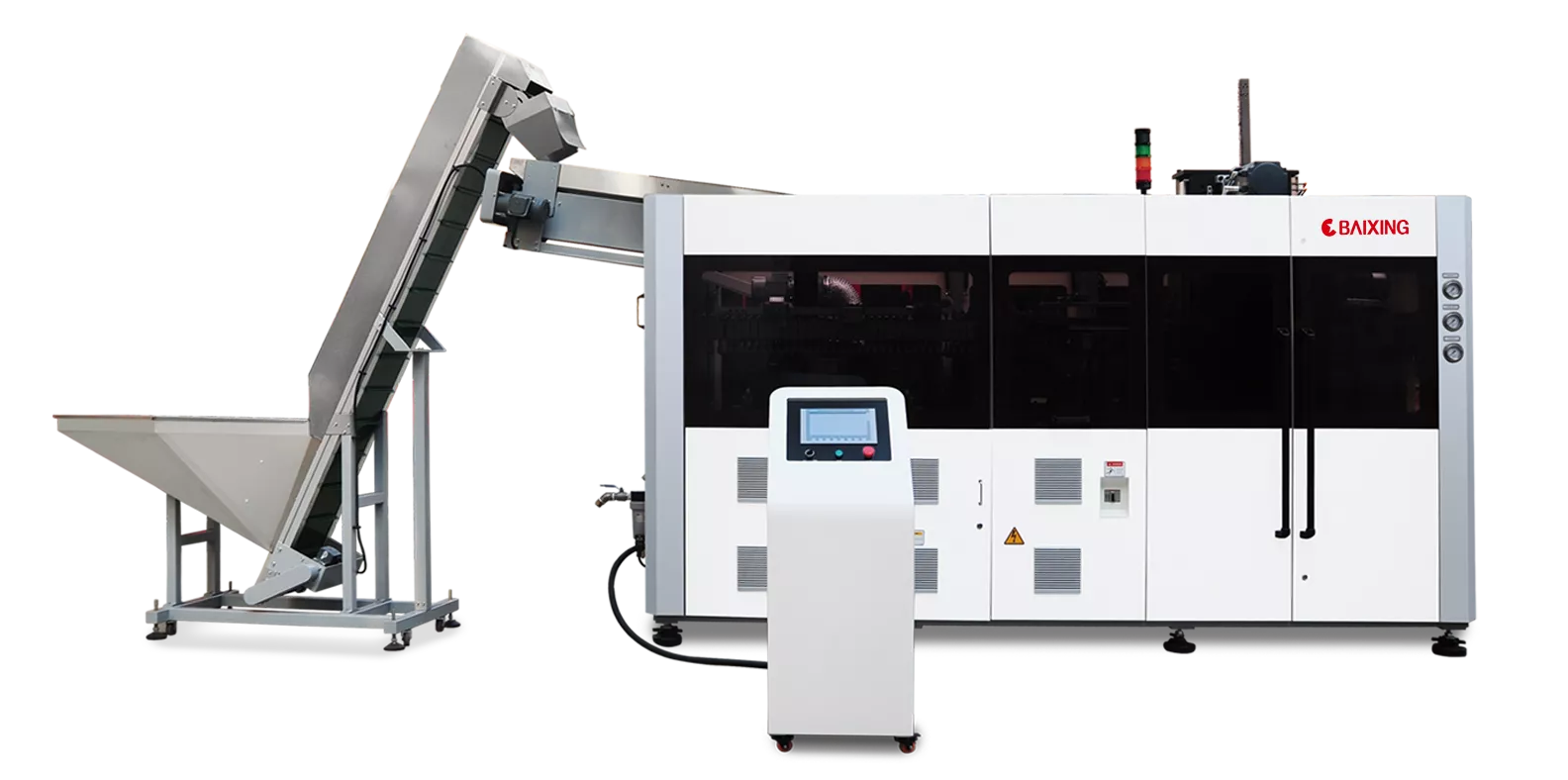

Full-automatic Servo Blow Molding Machine (CPⅡ Series)

——

1. The machine use continuous rotation system with multiple safety protection devices to ensure the high speed preform feeding. 2. Horizontal rotation transfer system make the construction and maintance more easy, reduce cost of spare part change. 3. The heating pitch between the preforms is small,effectively using the heating space of the lamp tube,and improving the heating efficiency and energy-saving effect of the preforms. 4. The water runs directly through the heating channel with air cooling system to protect preform neck from deformation. 5. Optimize oven air draft and preform surface cooling.Reversible heating box make it more easy to change lamp. 6. Mould closing adopts CAM linkage,no chain plate pin shaft make it small volume and long lift. 7. Servo motor for moving the preform into moudl ensure fast speed and accurate positioning . 8. Servo moto is used to drive the drawing and blowing station,equipped with high speed precision blowing valve set to achieve high production requirements. 9. Stainless steel pipe make the air blowing more clean without pollution. 10. High pressure recycle recycle system reduce power consumption. 11. Multiple direction positioned for the autoloader make it more flexibly for installation. 12. The machine is desighed to be compact in size.effectively reducing floor space.

Related Products

Main Data

ITEMS		UNIT	CPⅡ6-1.5L	CPⅡ6-2L	CPⅡ7-1.5L	CPⅡ8-1L	CPⅡ7-2L	CPⅡ8-1.5L	CPⅡ9-1L	CPⅡ10-0.7L	CPⅡ12-0.6L
CONTAINER	Number of Cavities	PC	6	6	7	8	7	8	9	10	12
	Max.Bottle Capactity	L	1.5	2	1.5	1	2	1.5	1	0.7	0.6
	Max.Neck Diameter	mm	30	30	30	30	30	30	30	30	30
	Max.Bottle Diamete	mm	95	110	95	80	110	95	80	70	65
	Max.Bottle Height	mm	350	350	350	300	350	350	300	300	250
	Theoretical Output	B.P.H*	9000-15000	9000-15000	1000-16000	17000	10000-16000	12000-17000	18000	20000	24000
MOLDING	Spindle Chain Pitch	mm	38	38	38	38	38	38	38	38	38
MOLDING	Bottle Cavity Pitch	mm	105	120	105	90	120	105	90	80	76
ELECTRICAL POWER	Max.heating Power	KW	40	100	80	80	100	80	80	80	60
	Servo Motor Power	KW	17.5	23.6	23.6	23.6	23.6	23.6	23.6	23.6	25.6
	Other Motor Power	KW	5	5	5	5	5	5	5	5	5
	Total Power	KW	62.5	128.6	108.6	108.6	128.6	108.6	128.6	108.6	90.6
	Voltage/Frequency	V/HZ	380±10% 50HZ/220V±10% 60HZ
AIR SYSTEM	Operating Pressure	Bar	7	7	7	7	7	7	7	7	7
	Low pressure Air Consumption	L/min	1000	1000	1000	1000	1000	1000	1000	1000	1000
	Blowing Pressure	Bar	35	35	35	35	35	35	35	35	35
	High Pressure Air Consumption	L/min*	6000	6000	6500	6500	6000	6500	7000	8000	10000
MOLD COOLING WATER	Operating Pressure	Bar	3-5	3-5	3-5	3-5	3-5	3-5	3-5	3-5	3-5
	Temperature Range	L/min	10-12	10-12	10-12	10-12	10-12	10-12	10-12	10-12	10-12
	Flow Rate	HP	50	50	50	50	50	50	50	50	50
	Cooling Capacity	℃	5	5	5	5	5	5	5	5	5
HEATER COOLING WATER	Operating Pressure	Bar	3-5	3-5	3-5	3-5	3-5	3-5	3-5	3-5	3-5
	Temperature Range	℃	15-20	15-20	15-20	15-20	15-20	15-20	15-20	15-20	15-20
	Flow Rate	L/min	50	50	50	50	50	50	50	50	50
	Cooling Capacity	HP	5	5	5	5	5	5	5	5	5
MACHINE	Size(LWH)	M	51.752.6	5.81.752.6			6.21.752.6		6.31.752.6		6.81.752.6
MACHINE	Weight	KG	5500	6500			7000		7000		8000

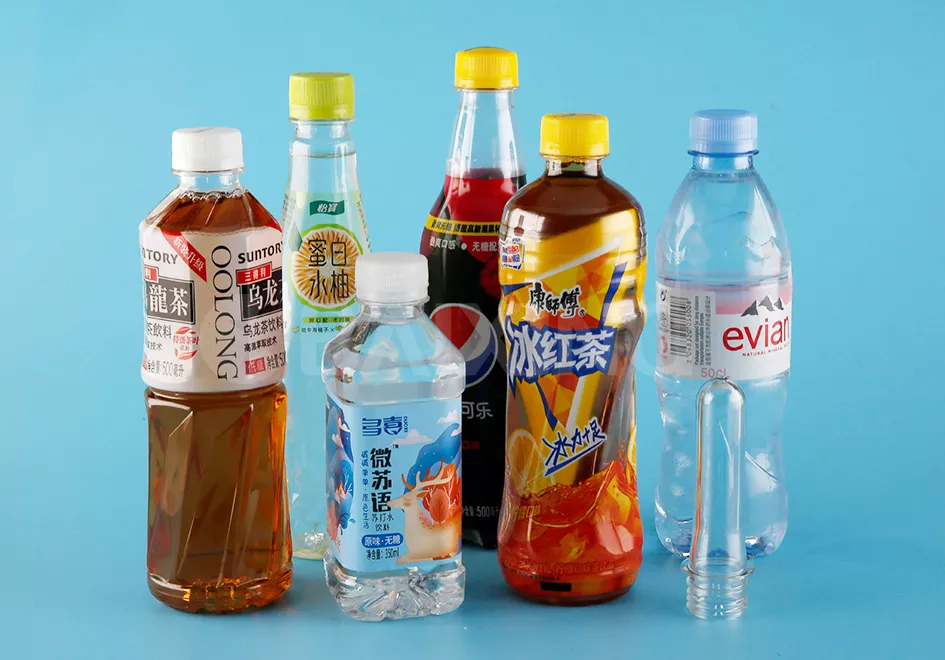

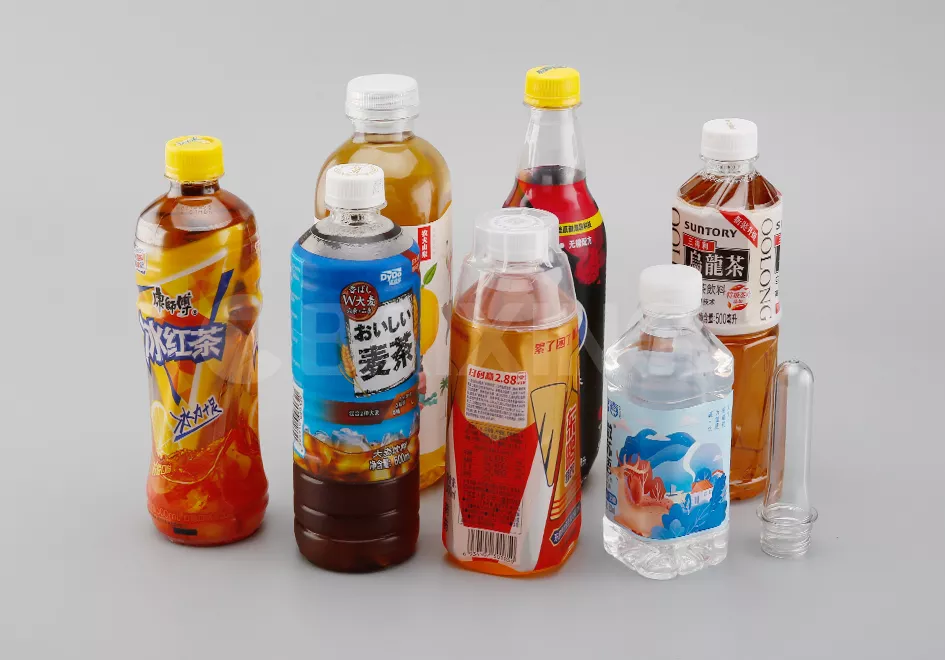

Remark	1.*The theortical output is based on 500ml bottle shape,the final production capacity is based on the preform,bottle design and volume.
Remark	2.*The high pressure air consumption is based on the 500ml bottle,the final consumption will depend on the bottle volume and output.
