Semi-automatic Blow Moulding Machine
——
- Good stability: thanks to excellent design concept, strict processing requirements and excellent electrical matching
- Competitive price: the machines offered are of good quality and at a lower price.

Main Data

Machine type

Unit

BX-D1

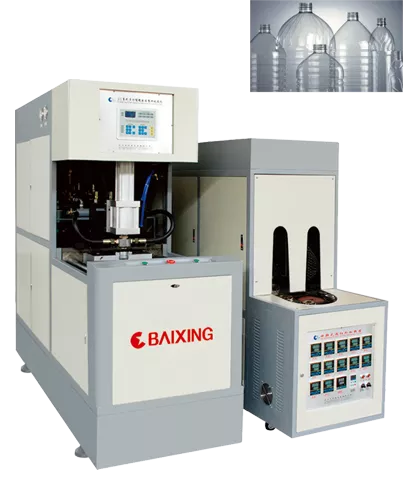

BX-D2

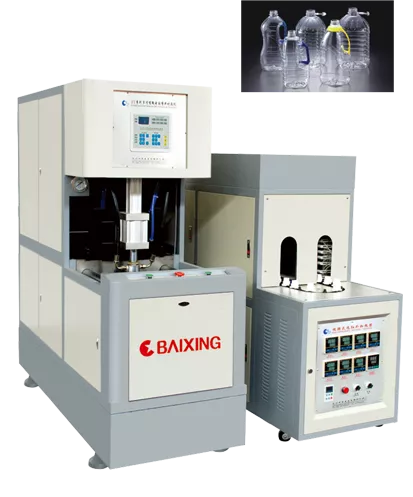

BX-C

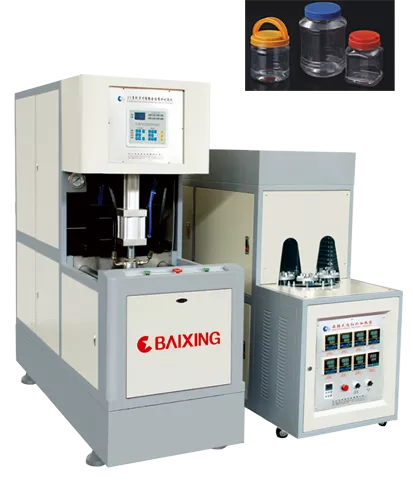

BX-CA

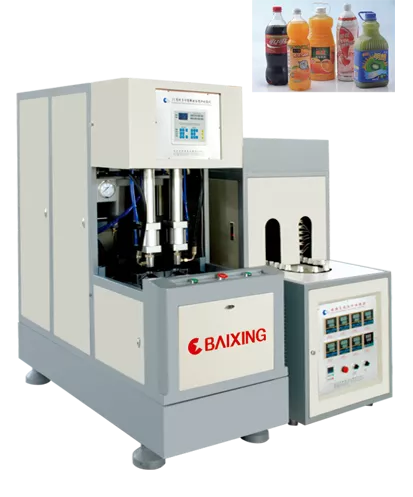

BX-B

Max.container volume

L

20

20

6

5

2.5

Theoretical output

Bph

60-90

150-250

350-500

400-600

800-1200

Max.neck diameter

mm

150

180

120

130

80

Max.container diameter

mm

300

300

200

200

120

Max.container height

mm

470

470

350

350

380

Max.mould thickness

mm

200-350

200-350

170-280

170-280

110-230

Mould opening stroke(Adjustable)

mm

350

350

230

230

160

Machine dimension(L*W*H)

m

2.2x0.8x1.9

2.2x0.8x1.9

1.67x0.62x1.65

1.67x0.62x1.65

1.4x0.62x1.6

Machine weight

kg

1350

1350

750

750

650

Heater dimension(L*W*H)

m

2.35x0.65x1.65

2.4x0.75x1.6

1.72x0.6x1.37

1.73x0.66x1.35

1.72v0.6x1.37

Heater weight

kg

350

350

230

230

230

Max.heating power

KW

25

28

14

14

14

Installation power

KW

27

30

15

15

15

Main Data

Machine type

Unit

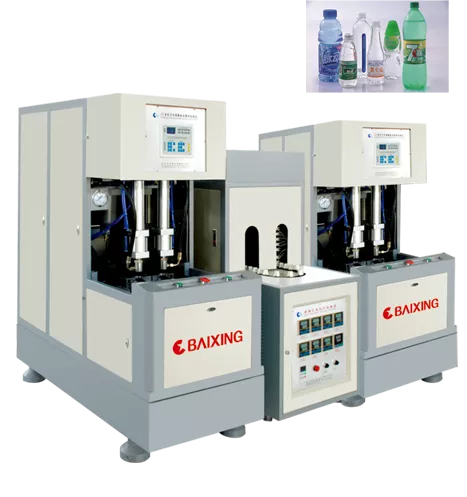

BX-B2

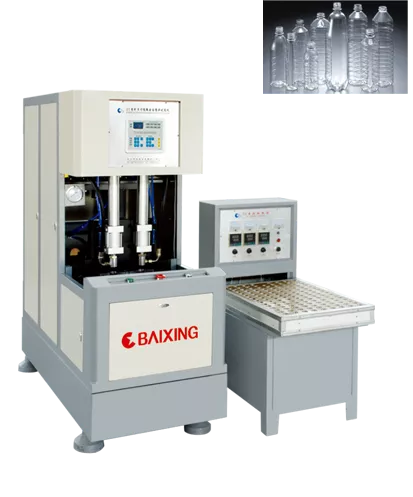

BX-A

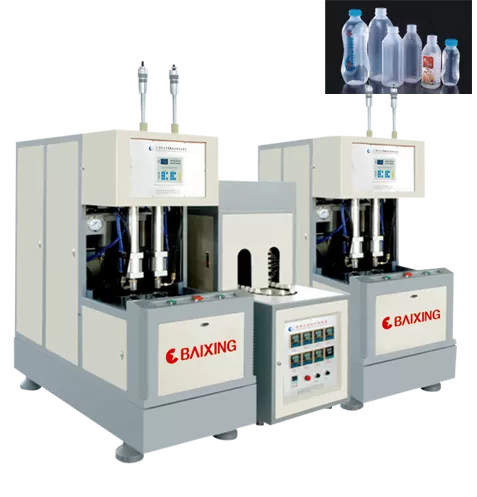

BX-E

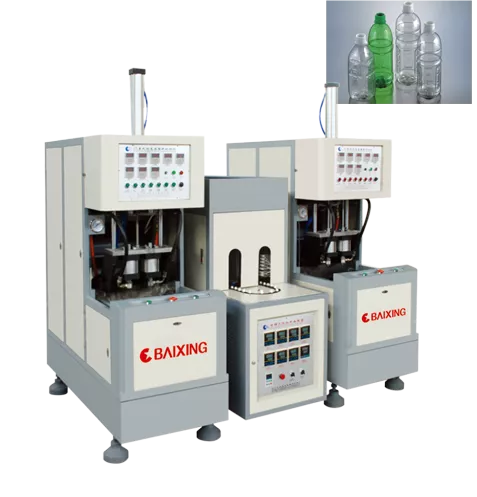

BX-G

Max.container volume

L

1.5

1.5

1.5

1.5

Theoretical output

Bph

1600-2200

800-1000

1000-1600

1000-1200

Max.neck diameter

mm

70

70

38

38

Max.container diameter

mm

110

110

95

100

Max.container height

mm

320

310

350

310

Max.mould thickness

mm

110-210

110-220

230

110-230

Mould opening stroke(Adjustable)

mm

160

160

160

160

Machine dimension(L*W*H)

m

1.4x0.62x1.6*2

1.4x0.62x1.6

1.4x0.62x1.9

1.45x0.62x2.0

Machine weight

kg

650*2

650

650

650*2

Heater dimension(L*W*H)

m

1.72x0.6x1.37

1.1x0.6x1.1

3.98x0.67x1.52

1.72x0.6x1.37

Heater weight

kg

230

150

550

230

Max.heating power

KW

14

3.6

45

16.8

Installation power

KW

16

4

48

18
