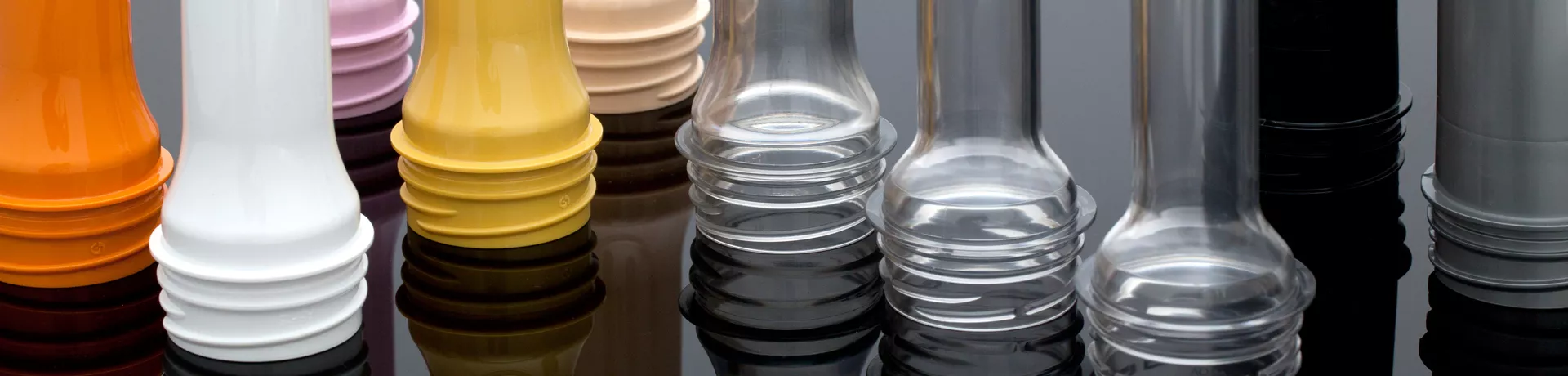

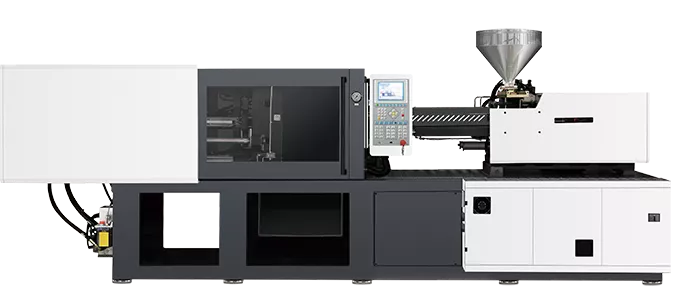

High-speed PET embryo injection system
————
-Cooling the inner surface of the preform without using the high pressure compressed air,unlike most post-mold cooling systems which only cool the outer surface.
-Optimized cycle utilization -being mounted on the moving platen, the cooling system.remains active within 85% of the overall cycle-time.
-Capacity of PET injection molding system is from 280 t0 500 tonnes(2800KN t0 5000KN),and it isavailable for the preform mould maxinum with 96 cavities.
Auxiliary machine series
————

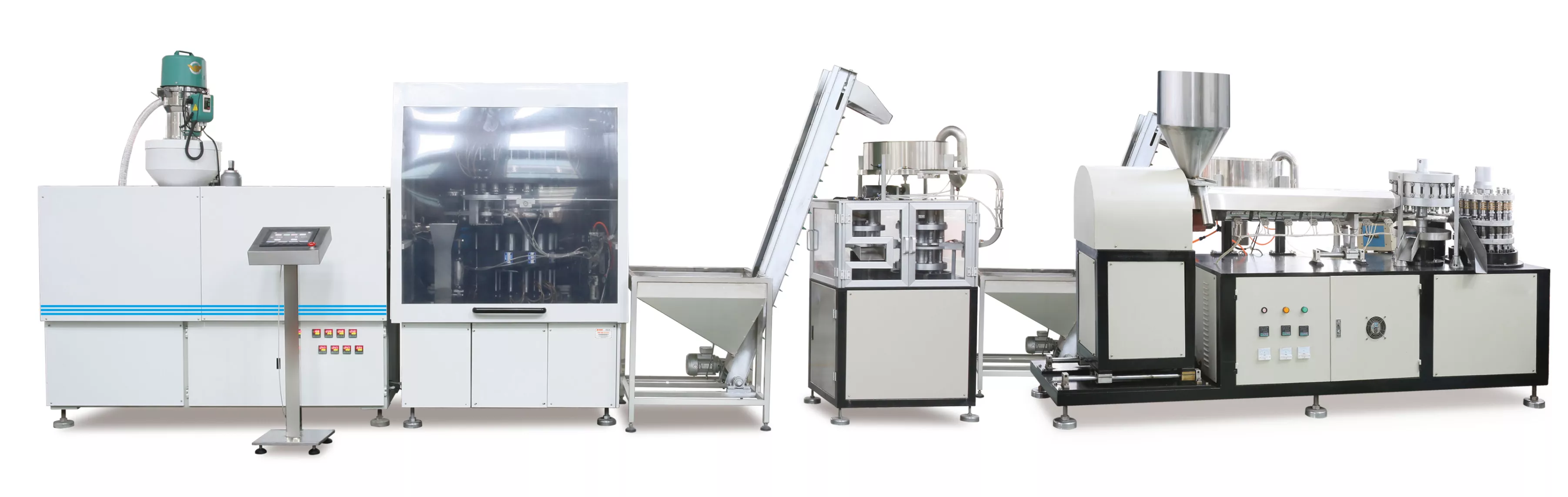

Auto Cap Compression Molding System
Auto Cap Folding-Cutting Machine
Auto Cap Lining Machine
Air compressor series
————

Screw Air Compressor

MODEL

Flow （m³/min）

Size L*W*H(m)

0.7mpa

0.8mpa

1.0mpa

1.2mpa

15kw

2.5

2.3

2.1

1.8

1.45x1.35x1.45

18.5kw

3.1

2.9

2.6

2.2

1.60x1.35x1.45

22kw

3.7

3.5

3.1

2.9

1.60x1.35x1.75

30kw

5.3

5.0

4.6

3.9

1.60x1.35x1.75

37kw

6.7

6.2

5.7

5.0

1.80x1.55x1.85

45kw

7.2

7.0

6.2

5.7

1.80x1.55x1.85

55kw

10.0

9.1

8.2

7.4

2.10x1.80x1.85

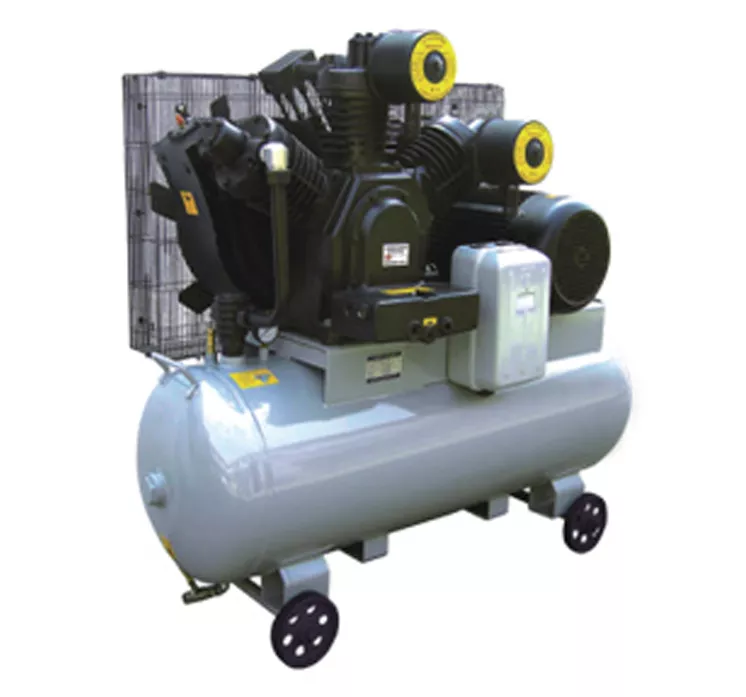

Low Pressure Air Compressor

MODEL

Flow （m³/min）

Pressure（Mpa）

Prower（Mpa）

Airtank（m³）

Size LL*W*H(m)

0.63/30

0.63

7.5

3.0

0.19

1.6x0.7x1.35

1.0/30

1.0

11

3.0

0.15

1.9x0.9x1.3

1.2/30

1.2

15

3.0

0.15

1.9x0.9x1.3

1.6/30-40

1.6

18.5

3.0/4.0

NO

1.25x1.05x1.7

2.0/30-40

2.0

11x2

3.0/4.0

NO

2.0x1.65x1.35

2.4/30

2.4

15x2

3.0

NO

2.0x1.65x1.35

3.2/30-40

3.2

18.5x2

3.0/4.0

NO

2.7x1.1x2.0

4.8/30-40

4.8

18.5x3

3.0/4.0

NO

4.0x1.05x1.8

6.0/30-40

6.0

22x3

3.0/4.0

NO

6.5x1.25x1.65

6.4/30-40

6.4

18.5x4

3.0/4.0

NO

6.3x1.2x2.0

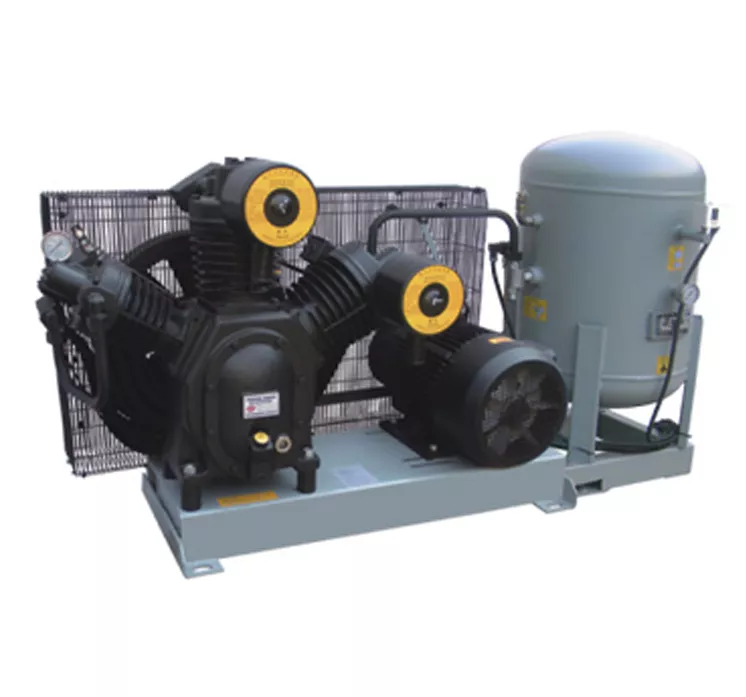

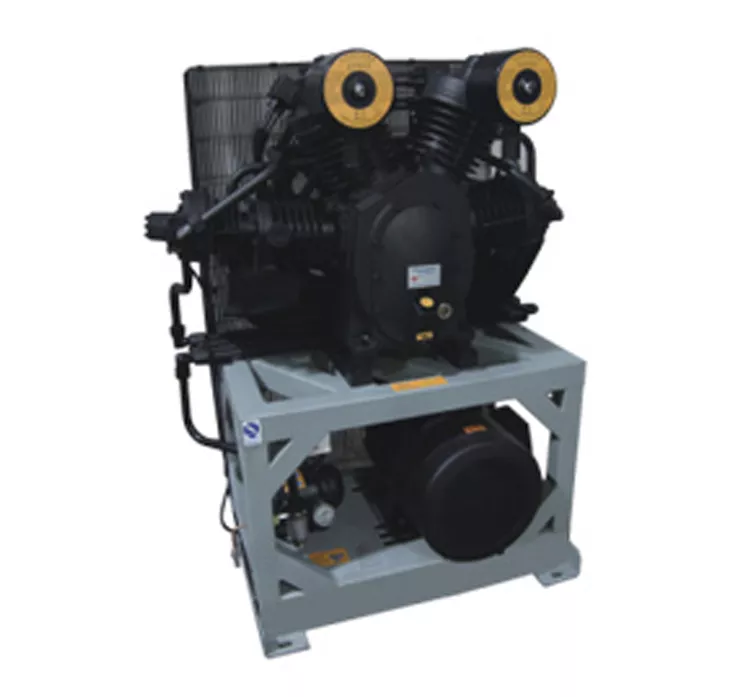

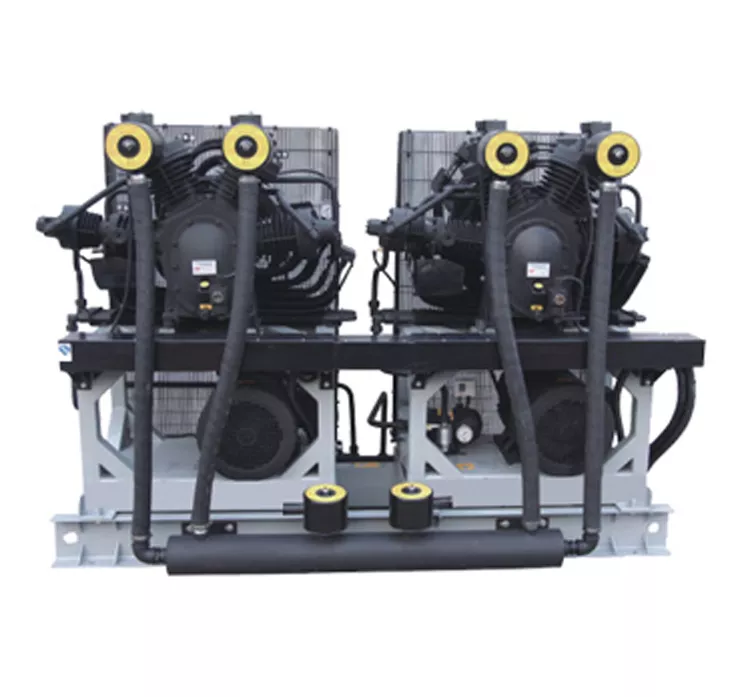

High Pressure Air Compressor

MODEL

Flow （m³/min）

Pressure（Mpa）

Power (KW)

Airtank（m³）

Size L*W*H(m)

1.0/10

1.0

7.5

1.0

0.19

1.8x0.85x0.65

1.6/10

1.6

11

1.0

0.30

2.0x1.05x1.9

2.0/10-12

2.0

15

1.0/1.2

0.36

2.0x1.05x1.9

3.0/10-12

3.0

22

1.0/1.2

0.45

2.1x1.1x1.9

4.0/10-12

4.0

15x2

1.0/1.2

0.48

2.3x2.1x1.9
